Industrial ATS Panel Services: Engineering, Manufacturing, Installation & Maintenance in Saudi Arabia
An Automatic Transfer Switch (ATS) is the vital intelligent link between the primary utility electrical grid (Saudi Electricity Company – SEC) and backup diesel generators. At Smart Technical Services, we deliver turnkey commercial and industrial ATS panel manufacturing, retrofit upgrades, scheduled preventive maintenance, and emergency switchgear repair across Jeddah, Makkah Province, and facilities throughout Saudi Arabia.
ATS Maintenance & Preventative Inspection Protocols in Saudi Arabia
ATS maintenance is the critical engineering process of testing, calibrating, and servicing automatic transfer switchgear to ensure immediate power cutover during grid failure. In Saudi Arabia’s high-ambient industrial environments (up to 50°C), routine ATS maintenance prevents electrical contact oxidation, mechanical transfer binding, auxiliary solenoid failure, and controller sensor drift on commercial units from 100A to 4,000A.
In high-demand commercial buildings, data centers, cold storage warehouses, and manufacturing plants, a diesel generator is only as reliable as the automatic transfer switch commanding it. If the ATS switch fails to signal the generator starter or fails to mechanically throw the main contactor, critical facilities suffer catastrophic blackout downtime despite having an operable engine on standby.

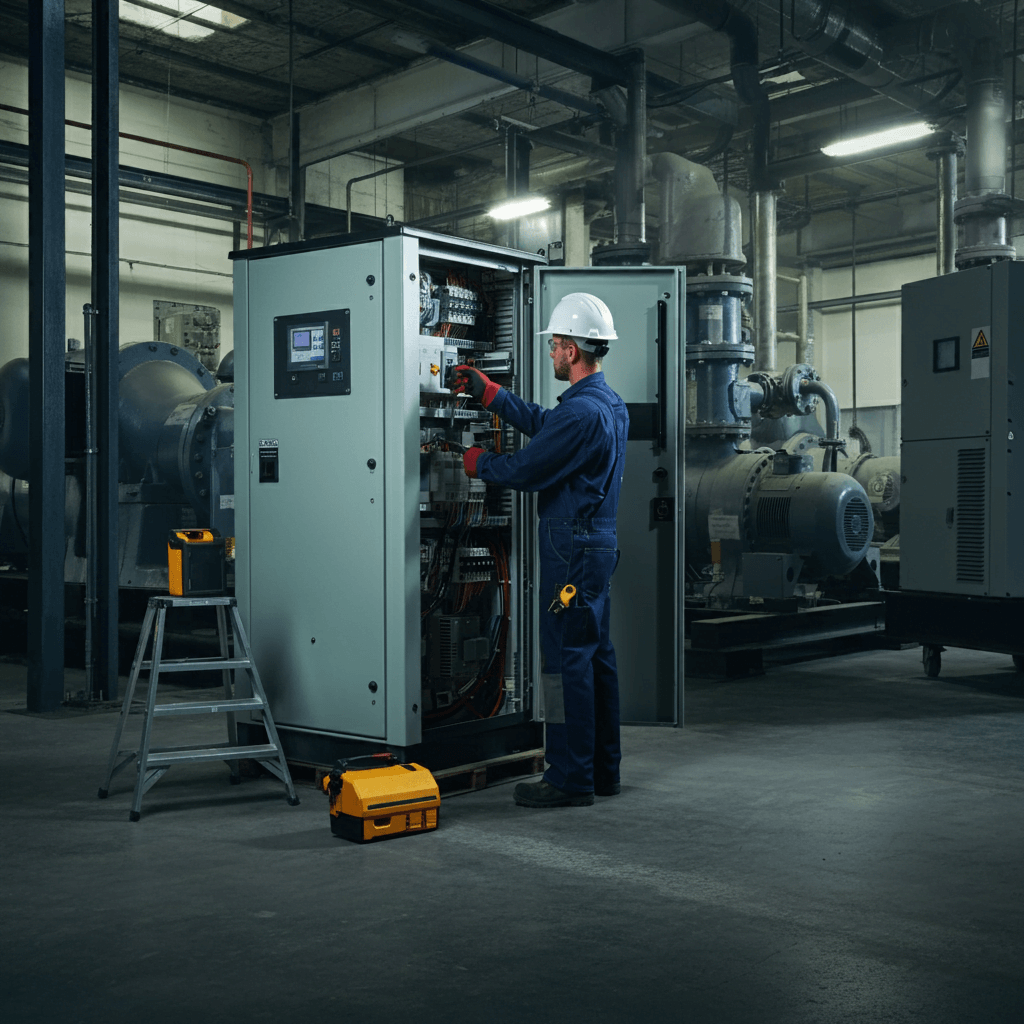

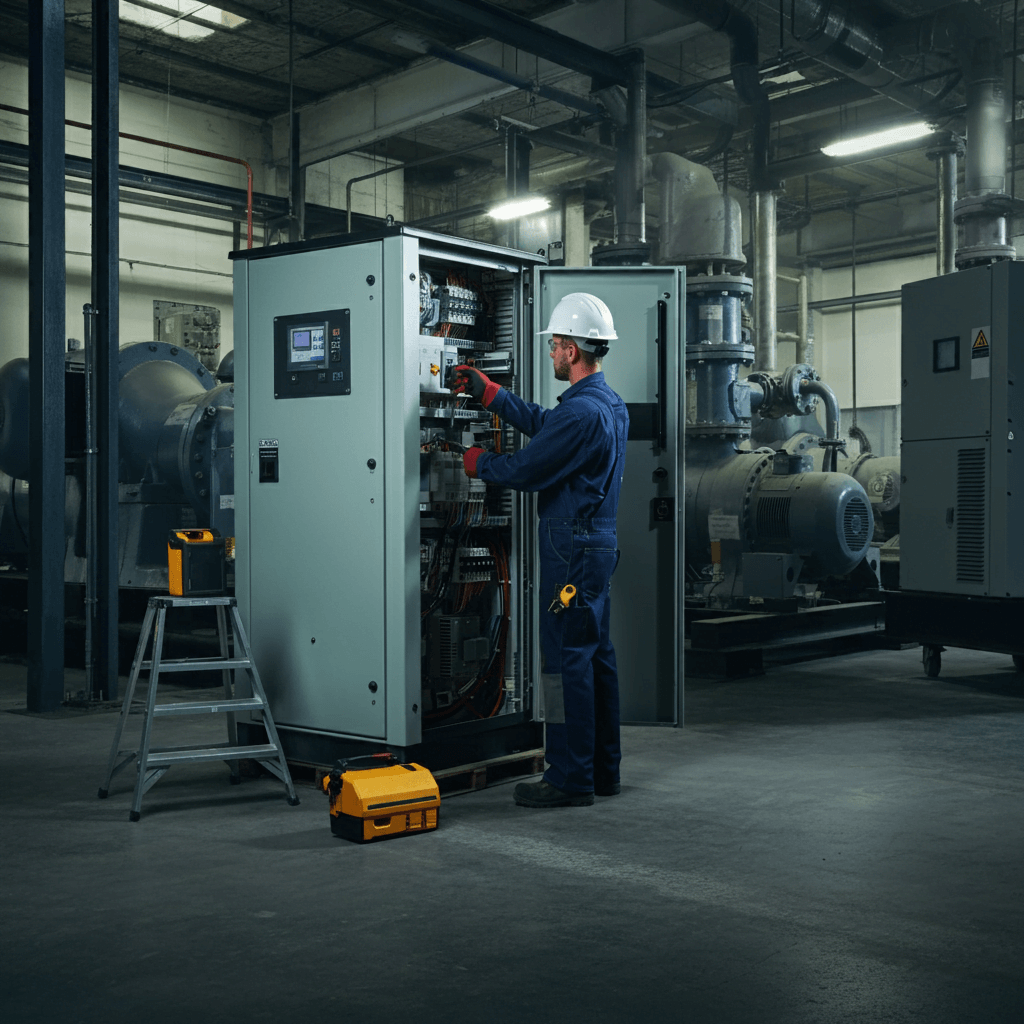

Our experienced field engineers perform rigorous preventative maintenance protocols designed to guarantee zero transfer failure:
- Infrared Thermal Thermography: We scan all power lugs, busbar joints, and contact terminals under peak facility load to detect localized heat buildup, loose terminations, and phase imbalances before electrical arc flash occurrences.
- Contact Resistance (Micro-Ohm) Diagnostics: We measure voltage drop across main power contacts (poles) using precision micro-ohmmeters. Worn, pitted, or oxidized contacts are professionally reconditioned or replaced to eliminate phase-loss hazards.
- Mechanical Actuator Lubrication & Timing: We inspect motorized mechanisms, transition linkages, and interlock solenoids, removing fine sand contamination and applying high-temperature dielectric grease.
- Digital Control Logic Calibration: We test and calibrate Deep Sea Electronics (DSE), ComAp, Woodward, Schneider, and ABB microprocessor modules—verifying under-voltage, over-voltage, frequency drop, and phase reversal trigger thresholds.
- Simulated Utility Blackout Testing: We conduct controlled utility failover tests under actual site load or via portable load banks to verify transfer timing, generator start command signal latency, and smooth re-transfer upon SEC grid stabilization.
Commercial & Industrial ATS Switchgear Specifications (100A – 4,000A)
Industrial ATS switchgear specifications define the current-carrying capacity, transition architecture, and pole configuration required to match commercial diesel generators from 200 kVA to 2,500 kVA. Selecting the appropriate switchgear ensures robust mechanical interlocking, short-circuit withstand ratings (kA), and compliance with SASO (Saudi Standards, Metrology and Quality Organization) standards.
| Switchgear Rating | Generator Match (kVA) | Pole Configuration | Transition Type | Microprocessor Platform | Recommended Application |
|---|---|---|---|---|---|
| 100A – 400A | 200 kVA – 350 kVA | 3-Pole / 4-Pole | Open Transition (Break-Before-Make) | DSE 334 / SmartGen | Commercial Buildings, Logistics & Clinics |
| 600A – 800A | 400 kVA – 550 kVA | 3-Pole / 4-Pole | Open / Delayed Transition | DSE 7320 / ComAp AMF 25 | Commercial Malls, Cold Storage & Warehouses |
| 1,000A – 1,600A | 700 kVA – 1,100 kVA | 4-Pole (Switched Neutral) | Delayed / Programmed Transition | ABB / Schneider Electric / DSE | Industrial Manufacturing & Hospitals |
| 2,000A – 4,000A | 1,500 kVA – 2,500 kVA | 4-Pole Full Isolation | Closed Transition (Make-Before-Break) | ComAp InteliCompact / Woodward | Data Centers, Desalination & Ports |
Engineering Switchgear Disclaimer: Switchgear ampere ratings, withstand current thresholds (kA), and transfer transition times vary according to site fault levels, utility transformer impedance, and SASO electrical codes. Smart Technical Services conducts comprehensive on-site load and short-circuit coordination studies prior to switchgear sizing and installation.
Emergency ATS Panel Repair & Troubleshooting Services
Emergency ATS panel repair resolves sudden switchgear failures where power transfers stall, contactors fuse, or control modules lose synchronization with the generator. Smart Technical Services provides rapid on-site troubleshooting across Western Saudi Arabia to isolate mechanical actuator jams, burnt auxiliary coils, and logic board faults, restoring building power without delay.
Our senior field technicians arrive equipped with specialized diagnostic instruments and critical replacement parts to troubleshoot common switchboard emergencies on site:
- Failure to Transfer to Generator: Often caused by auxiliary contact burnout, starter signal relay failure, or battery charger power loss feeding the ATS controller.
- Failure to Re-Transfer to Mains: Usually linked to utility sensing phase drop, timer lockout faults, or mechanical linkage binding caused by airborne dust and thermal expansion.
- Main Contactor Chattering or Humming: Indicates low coil control voltage, severe AC hum from dirty contact faces, or defective bridge rectifiers.
- Neutral Inversion & Harmonic Heating: We diagnose 4-pole switchgear issues where non-linear commercial loads cause overheating in unswitched neutral conductors.
Generator Synchronization & Paralleling Switchboards
Generator synchronization panels allow multiple commercial diesel generators (200 kVA to 2,500 kVA) to synchronize frequency, phase angle, and voltage, combining their electrical capacity into a single common busbar. This architecture provides seamless N+1 redundancy, dynamic load shedding, and peak shaving for massive commercial installations across Saudi Arabia.
Smart Technical Services engineers, programs, and commissions custom paralleling systems using market-leading synchronizers including Deep Sea Electronics (DSE 8610 MKII), ComAp (InteliGen), and DEIF. Whether synchronizing dual 500 kVA generators or a multi-megawatt four-generator setup, we ensure automatic load sharing, reverse power protection, and motorized air circuit breaker (ACB) coordination.
Our 4-Stage Engineering & Overhaul Workflow
Every ATS manufacturing, retrofit, or preventive maintenance engagement follows our structured 4-stage engineering protocol, guaranteeing regulatory compliance and rock-solid reliability:
Thermal thermography, contact micro-ohm testing & logic checks
Clear B2B proposal with OEM switchgear & component specs
Experienced field engineering team servicing switchgear
Simulated blackout transfer test & client sign-off report
Saudi Regional Coverage: Western Hub & National Field Support
Smart Technical Services operates a two-tier service structure to support industrial and commercial enterprises across the Kingdom:
- Tier 1 — Western Region Rapid Dispatch (Central Hub): Immediate on-site dispatch across Jeddah (1st, 2nd, and 3rd MODON Industrial Cities, South Jeddah Logistics), Makkah Al-Mukarramah, Rabigh Industrial Complex, King Abdullah Economic City (KAEC) Port & Industrial Valley, and Yanbu Industrial City.
- Tier 2 — National Scheduled Field Technicians (By Appointment): Pre-scheduled engineering teams for switchgear commissioning, periodic AMC servicing, and synchronization overhauls in Riyadh and Dammam / Eastern Province.
Related Commercial Generator Services
To ensure total reliability across your electrical power infrastructure, integrate our specialized turnkey services:
- Diesel Generator Repair Services — Rapid mechanical and electrical diagnostics for commercial units from 200 kVA to 2,500 kVA.
- Generator AMC Maintenance Contracts — Scheduled quarterly and annual preventive maintenance programs tailored for Saudi enterprises.
- Industrial Generator Installation — Turnkey site mechanical rigging, acoustic attenuation, exhaust piping, and switchgear integration.
- Generator Contractor Jeddah — Commercial electrical contracting starting from 50 kW for industrial complexes.
Frequently Asked Questions: ATS Panel Maintenance & Repair
Explore answers to common engineering questions regarding automatic transfer switch maintenance, manufacturing, and failover timing:
How often should an ATS panel undergo maintenance in Saudi Arabia?
We recommend a comprehensive thermal thermography and contact resistance inspection every 6 months, alongside monthly simulated transfer tests. In high-dust industrial zones (such as Jeddah Industrial Cities and Rabigh), semi-annual actuator cleaning and contact lubrication prevent mechanical binding caused by fine sand accumulation.
What causes an ATS panel to fail during a utility blackout?
The primary causes are auxiliary coil burnout, oxidized main contact poles, discharged 12V/24V control batteries feeding the controller, or microswitch misalignments. Scheduled preventative maintenance catches these defects before actual grid outages occur.
Can you retrofit a modern digital ATS controller onto an older switchboard?
Yes. Our senior engineers routinely replace outdated relay-based systems or obsolete controllers with modern Deep Sea Electronics (DSE) or ComAp microprocessor modules, adding remote telemetry, phase monitoring, and automatic exercise timers.
What is the difference between open transition and closed transition ATS panels?
Open transition (break-before-make) briefly interrupts power for milliseconds before connecting the generator, suitable for standard commercial facilities. Closed transition (make-before-break) momentarily parallels both sources, ensuring zero millisecond interruption for critical data centers, medical operating suites, and high-tech manufacturing.
