The alternator is the electrical heart of any diesel generator installation, converting the diesel engine’s mechanical torque into stable, high-current three-phase alternating electrical power. In the demanding industrial environments of Saudi Arabia—where ambient temperatures frequently surpass 48°C, coastal salt air along the Red Sea and Arabian Gulf causes rapid oxidation, and airborne silica dust penetrates acoustic louvers—alternator windings endure extreme thermal and dielectric stress. When an alternator suffers a phase-to-ground short, turn-to-turn insulation breakdown, or catastrophic stator coil burnout, industrial facility managers require a precision electro-mechanical workshop to rewind generator stator and rotor assemblies back to factory specifications.

Smart Technical Services (STS) operates a specialized, high-capacity electrical rewinding facility headquartered in Jeddah, providing heavy-duty generator stator winding, precision generator rotor winding, and turnkey alternator rewinding services for units ranging from 200 kVA to 2,500 kVA. Utilizing exclusively Class H (180°C) high-temperature insulation systems, pyrolytic temperature-controlled burnout ovens, automated coil-winding equipment, Vacuum Pressure Impregnation (VPI), and electronic dynamic balancing, we restore failed industrial alternators to superior-than-OEM reliability.

Root Causes of Stator & Alternator Breakdown in Saudi Arabia

Diagnosing why a generator alternator failed is crucial before initiating any generator winding repair or generator motor rewinding. Simply rewinding a stator without correcting external root causes invites rapid re-failure. In commercial and industrial facilities across KSA, our electromechanical engineers commonly isolate the following failure mechanisms:

• Severe Thermal Overheating & Chronic Overload: Operating generator sets continuously near 100% rated capacity in high summer ambient conditions degrades organic insulation resins. The Arrhenius rule dictates that for every 10°C rise above maximum thermal limits, winding insulation lifespan is cut in half. Over time, enamel varnishes become brittle, micro-fracture, and arc.
• Harsh Coastal Salt Air & Moisture Contamination: Facilities in Jeddah, Yanbu, Rabigh, and Dammam operate in high-humidity coastal atmospheres. Moisture and airborne salt deposit on winding end-turns, creating conductive tracking paths across phase separators and triggering dead short circuits to the grounded stator frame.
• Turn-to-Turn Dielectric Punctures: Sudden high-voltage inductive switching transients, lightning surges, or severe harmonic distortion from heavy non-linear industrial loads (such as Variable Frequency Drives and large smelting rectifiers) cause localized dielectric punch-through between adjacent copper turns.
• Harmonic Vibration & Slot Wedge Loosening: Prolonged engine torsional vibration or unbalanced electrical phase loading loosens the fiberglass slot wedges holding copper stator bars securely in the stator core laminations. Loose coils vibrate at twice the operating frequency (120 Hz on 60 Hz grids), rapidly wearing away slot liner insulation through mechanical abrasion.
• Exciter & Rotating Rectifier Diode Failure: Open-circuit or short-circuit failures in the rotating diode bridge assembly force the Automatic Voltage Regulator (AVR) to deliver maximum ceiling field excitation, overheating and destroying the main exciter stator and rotor windings.

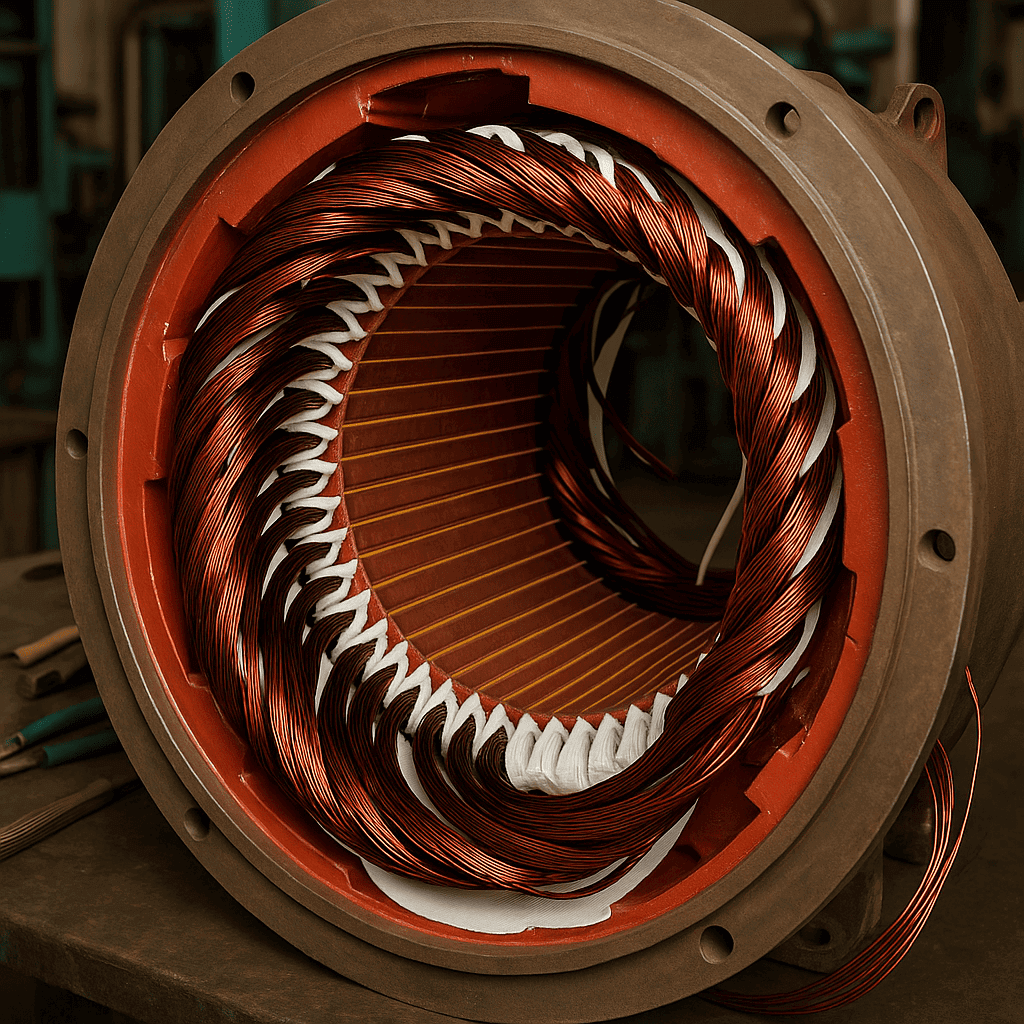

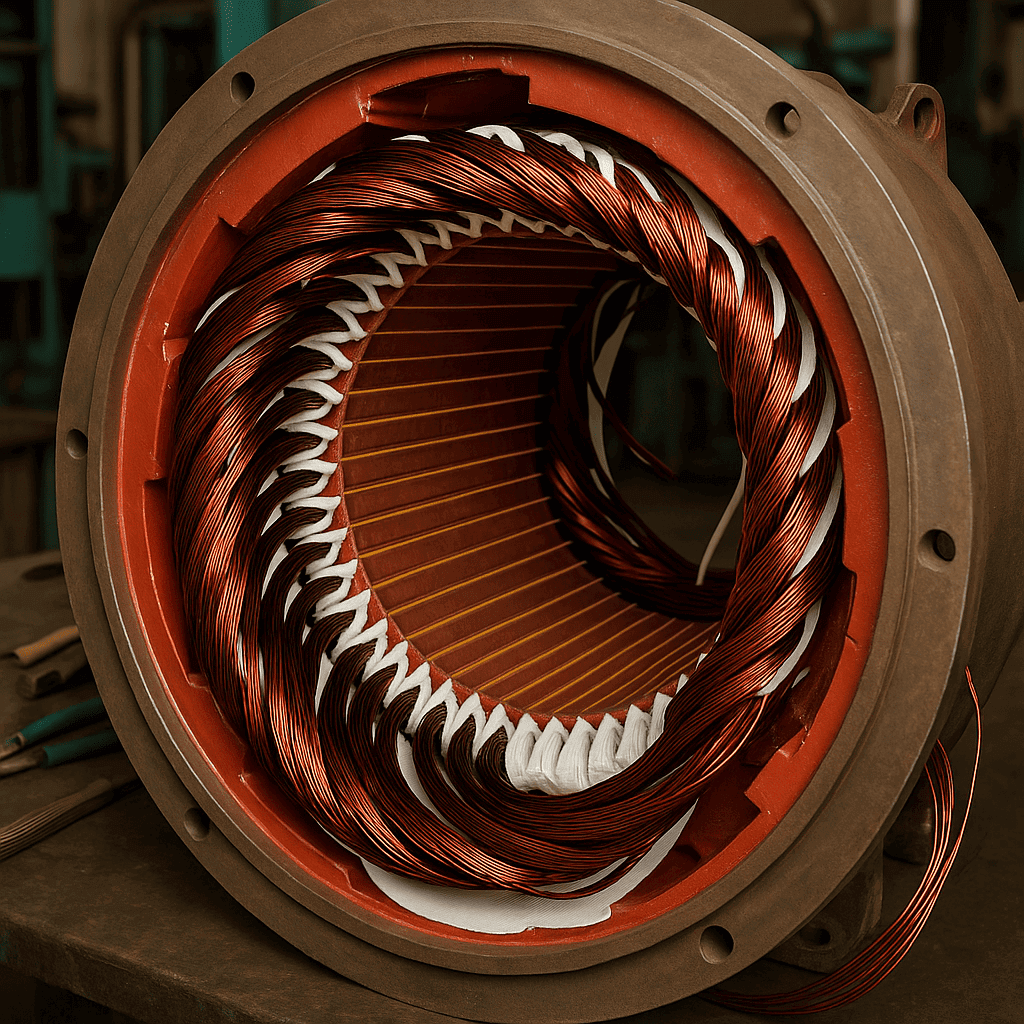

Class H Insulation Engineering, Precision Copper Winding & Slot Liners

Industrial alternators powering critical plants, data centers, and hospitals cannot rely on standard Class B or Class F motor-grade insulation. At Smart Technical Services, our generator stator rewinding service adheres to stringent Class H standards:

• Pyrolytic Burnout Oven (Zero Core Damage): Failed stators are stripped inside an indirect-fired, computer-controlled burn-out oven maintained strictly below 360°C. This gently vaporizes old varnish without damaging or warping the fragile silicon steel magnetic laminations, preventing increased iron core hysteresis losses.
• Pure Oxygen-Free Electrolytic Copper Wire: We rewind stators using exclusively Grade 2 modified polyester-imide overcoated with polyamide-imide magnet wire (Dual-Coated, 200°C thermal class), guaranteeing maximum conductivity, exceptional mechanical ductility, and superior resistance to thermal shock.
• Multi-Layer Nomex & Kapton Slot Insulation: Every stator slot is lined with heavy-gauge DuPont Nomex-Mylar-Nomex (NMN) or Kapton composites. Phase separators and end-turn spacers are hand-tailored from high-dielectric mica tape and Class H fiberglass laminate sheets to eliminate inter-phase arcing.
• Precision End-Turn Lacing & Bracing: High-power stator end-turns experience massive magnetic repulsion forces during short-circuit transients or large motor starting. We securely bind and brace coil overhangs using heat-shrinkable polyester lacing tape and fiberglass support rings to prevent any coil deflection.

Vacuum Pressure Impregnation (VPI), High-Pot Dielectric & Surge Testing

The difference between an average repair and an industrial-grade rewind lies in resin impregnation and dielectric quality assurance. Traditional dip-and-bake methods frequently trap air voids deep inside the coil slots, leading to corona partial discharge and moisture entry. Smart Technical Services utilizes advanced Vacuum Pressure Impregnation (VPI):

1. Vacuum Phase: The rewound stator is placed inside a sealed pressure vessel and drawn down to high vacuum (< 2 Torr) to completely extract moisture, trapped solvents, and air pockets from the deepest coil bundles.
2. Pressure Impregnation Phase: High-grade, solventless Class H epoxy resin is introduced, and positive dry nitrogen pressure (up to 6 to 8 bar) is applied. This drives the dielectric resin deeply into every microscopic pore of the copper conductor bundle and slot liner.
3. Controlled Oven Curing: The unit is transferred to our calibrated convection curing oven for a prolonged baking cycle at 150°C to 160°C, polymerizing the resin into a rock-solid, moisture-impervious, void-free monolithic structure resistant to industrial chemicals, fuels, and salt air.
4. Dielectric High-Pot & Surge Comparison Testing: Prior to release, the stator undergoes rigorous electrical verification: Insulation Resistance (Megger testing at 2,500V DC achieving > 100 MΩ), Polarization Index (PI = R10min / R1min > 2.5), DC High-Potential dielectric withstand testing, and Surge Comparison Testing to verify flawless turn-to-turn insulation symmetry across all three phases.

Alternator Specifications, Dynamic Rotor Balancing & Testing Matrix

Every generator rotor assembly rewound or overhauled in our workshop undergoes electronic dynamic balancing on our computer-controlled horizontal balancing machine to eliminate mechanical vibration before reassembly:

2-Tier Nationwide Logistics: Central Jeddah Overhaul Workshop to Riyadh & Dammam

Electro-mechanical rewinding requires heavy workshop infrastructure, precision balance benches, and curing ovens that cannot be transported to a temporary job site. Smart Technical Services bridges this requirement through our seamless 2-Tier Logistics and Engineering Service Model:

• Tier 1 — Central Electro-Mechanical Workshop (Jeddah Hub): Our primary engineering workshop in Jeddah houses our pyrolytic burn-out ovens, automated coil-winding lines, VPI autoclaves, and balancing equipment. We provide rapid crane extraction, transport, and 24/7 turnaround for facilities across Jeddah Industrial Areas, Makkah, Rabigh, KAEC, and Yanbu.
• Tier 2 — Scheduled Regional Field Support & Transport (Riyadh & Dammam): For enterprise clients in Riyadh, Dammam, Khobar, and Jubail, our regional field technicians conduct on-site diagnostics, AVR testing, and component decoupling. We coordinate secure, insured heavy freight logistics to our central Jeddah overhaul workshop, returning and reinstalling the fully tested rewound alternator on-site with full alignment and commissioning.

Synergistic Support: Generator Rentals, Overhauls & Switchgear Integration

When an industrial alternator suffers major coil failure, facility managers must maintain site operations while the unit is undergoing workshop rewinding. Smart Technical Services provides turnkey engineering synergy to eliminate downtime:

• Temporary Power Backup: Our Industrial Diesel Generator Rental Division provides immediate, synchronized replacement generators (200 kVA to 2,500 kVA) deployed directly to your facility, ensuring full production continuity during the workshop rewind cycle.
• Complete Mechanical Engine Overhauls: While the alternator is decoupled, our field teams can perform engine in-chassis overhauls, cylinder head reconditioning, and turbocharger rebuilds through our diesel generator overhaul services division.
• Emergency Mobile Troubleshooting: If your generator trips on excitation or voltage instability, contact our 24/7 Local Generator Repair Team for immediate field diagnostics.
• Switchgear & ATS Validation: After reinstalling the rewound alternator, our electrical engineers test seamless power transfer across your building switchgear and 400 Amp Changeover Switch assemblies under our experienced diesel generator mechanics.
